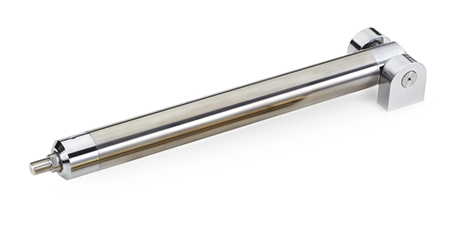

The MXP series is part of the nautical standard Grices production.

The usage of stainless steel AISI 316 assures the total absence of corrosion.
The addition of a power source from the rear pivot pin and the resulting removal of external hoses, makes the application suitable for a sleek design.
The choice of selected materials, the severe controls of 100% of all cylinders produced and the quality of the means of production, allows us to reach high standards of quality, reliability and enduring product performance.
The seals used, supplied by premium suppliers, grant high performance and international availability.

Technical characteristics:

  • Nominal pressure 12 MPa (continuous operation)
  • Maximum pressure 15 MPa
  • Bore: 40-50 mm
  • Stroke: up to 1000 mm
  • Seals: NBR high performance for static and dynamic use
  • Power source from rear pin

Options:
  • STP fixing brackets of the cylinder to boat stern

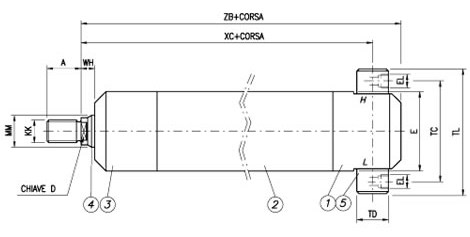

ITEM MATERIAL
1 Rear head Chromium-plated brass 58
2 Pipe AISI 316 stainless steel
3 Front head Chromium-plated brass 58
4 Rod Ground AISI 316 stainless steel
5 Pin Ground AISI 316 stainless steel
