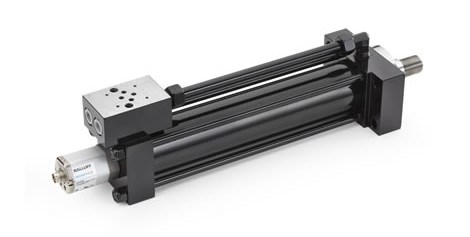

CHT series integrates magnetostrictive transducers and is designed to guarantee maximum reliability, high performance and endurance.
The integrated transducer and the technology used, assure precision and lack of friction, as the parts in movement are not in contact with each other.
These characteristics allow the cylinder to operate in heavy working environments, protected from dirt and shock, ensuring maximum reliability of the system and reducing the need of maintenance to a minimum. Transducers can be supplied with analogue or digital output.

The compact construction that follows ISO 6020/2 and DIN 24554 standards , with squared heads and tie rods suit every kind of industrial application with compact dimensions and continuous nominal pressure up to 16 MPa.

The choice of selected materials, the severe controls of 100% of all cylinders produced and the quality of the means of production, allows us to reach high standards of quality, reliability and enduring product performance.

The seals used, supplied by premium suppliers, grant high performance and international availability.

The wide range of seals, allows us to offer cylinders for applications with different kinds of hydraulic fluids, speed, frequency and operating temperature.

Technical specifications:

  • Standard ISO 6020/2 and DIN 24554.
  • Magnetostrictive position transducer integrated with analogue output signal (intensity or tension) or digital output signal (SSI or CAN-open or PROFIBUS-DP)
  • Nominal pressure 16 MPa (continuous operation)
  • Maximum pressure 25 MPa
  • Bore 40-200 mm
  • Stroke: up to 4000 mm
  • Up to 3 rod diameter per bore
  • 9 Mounting styles Ref. ISO MP1 – MP3 – MS2 –MT1 –MT2 –MT4 –ME5 –MP5- MX3


Options:
  • Analogue output signal: 4/20 mA or 0/10 V
  • Digital output signal: SSI or CAN-open or PROFIBUS-DP
  • Front cushion
  • Air bleeds
  • Rod treatment : chromed, induction hardened and chromed, nickel-chromed
  • Drainage
  • Subplate CETOP 03/05


EPC Cylinder configurator
This is an innovative tool that allows the client to configure CH cylinders in a rapid and intuitive way, guiding the technician through the choices of all the options available. Once the cylinder code is defined, the EPC software provides 2D, 3D and PDF drawings, and gives the user the possibility to save projects and request offers. With the complete access, reserved to the purchasing department, it is possible to make orders directly. For all orders received through EPC an extra discount will be applied.

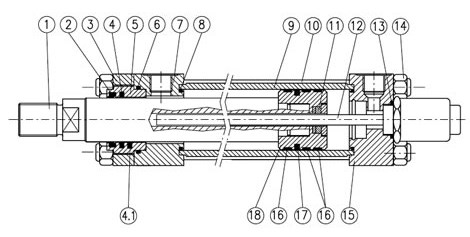

ITEM MATERIAL
1 Rod Chromium-plated steel
2 Dust scraper Nitrile rubber
3 Flange Steel
4 Rod seal Nitrile rubber and PTFE
4,1
2nd Rod seal (option L) Nitrile rubber and PTFE
5
Guide bushing
Cast iron
6
O-Ring + PBK Nitrile rubber
7
Head Steel
8
O-Ring + PBK Nitrile rubber
9
Liner Steel
10 Tie rod Steel
11 Position indicator -
12 Measuring shaft Steel
13 O-Ring Nitrile rubber
14 Self-braking nut Steel
15 Rear head Steel
16 Anti-friction slide PTFE
17 Piston B seal Nitrile rubber and PTFE
18 Piston Steel

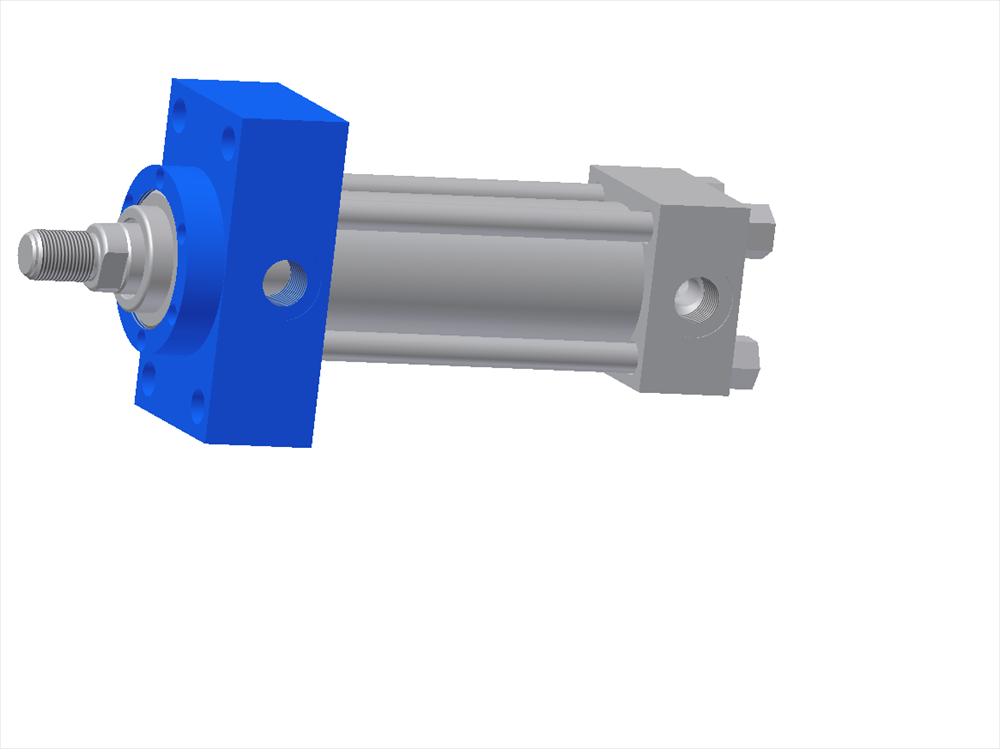

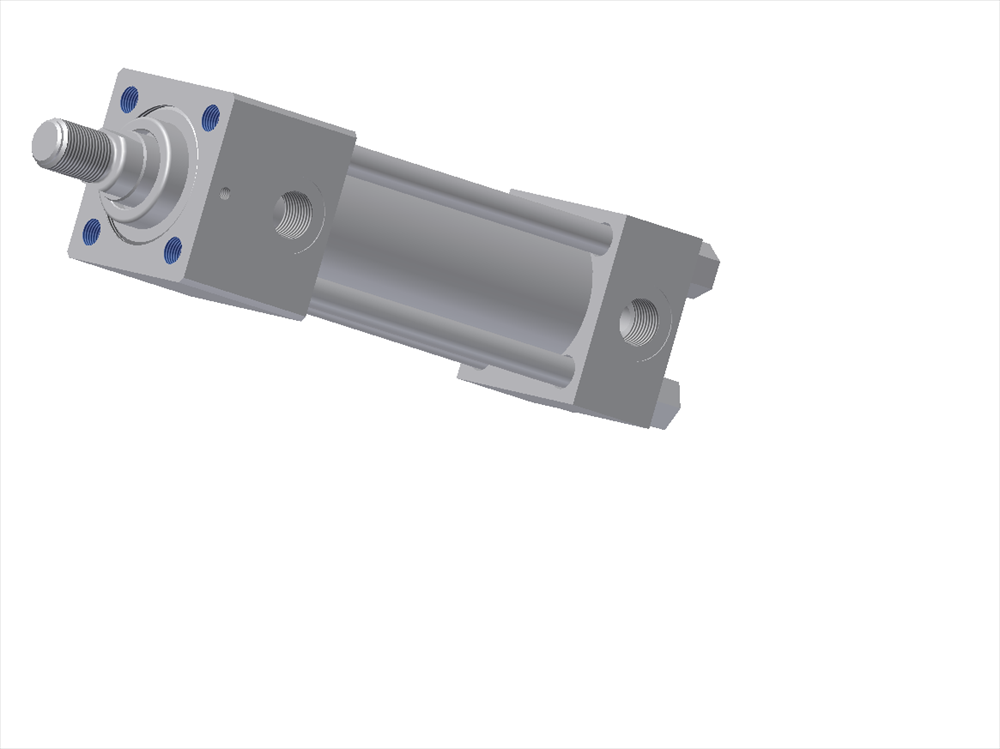

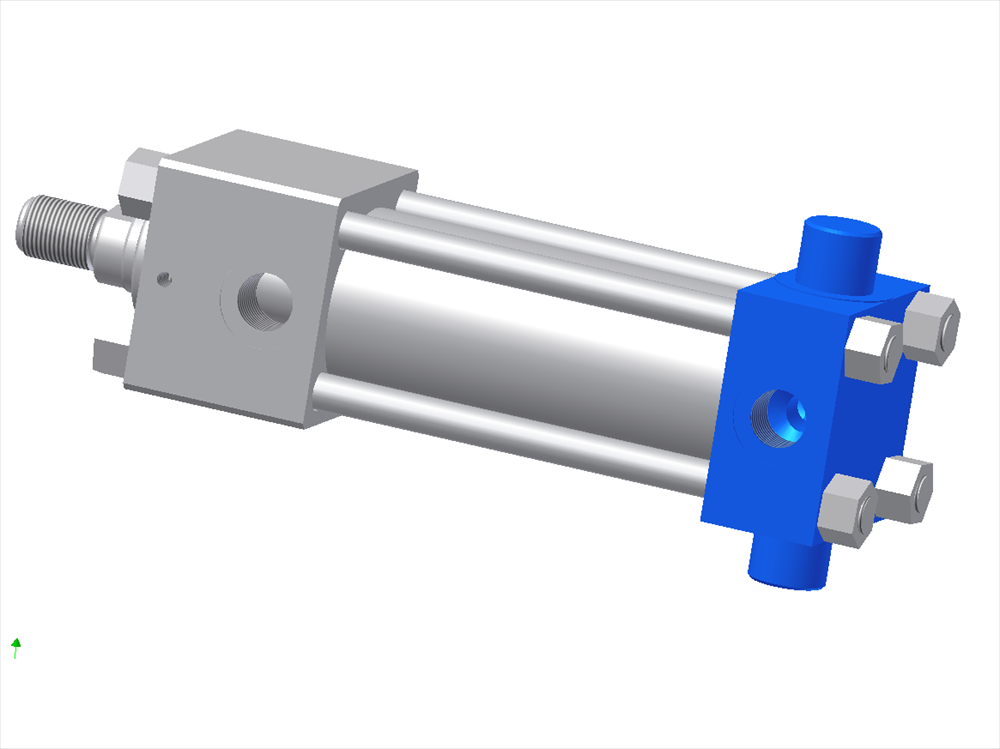

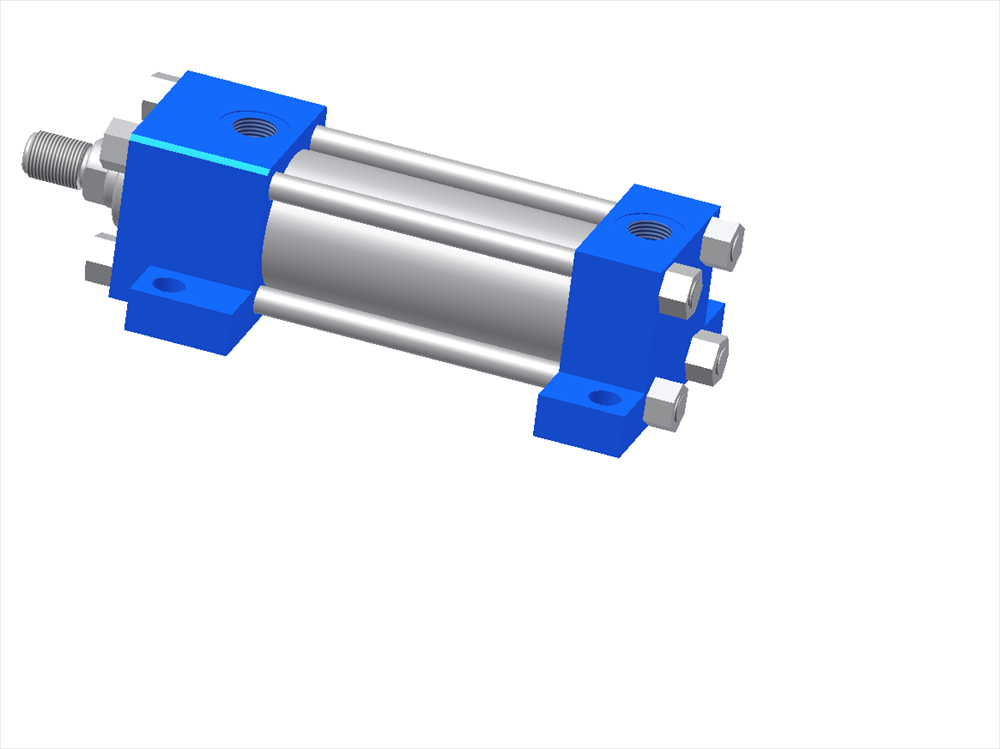

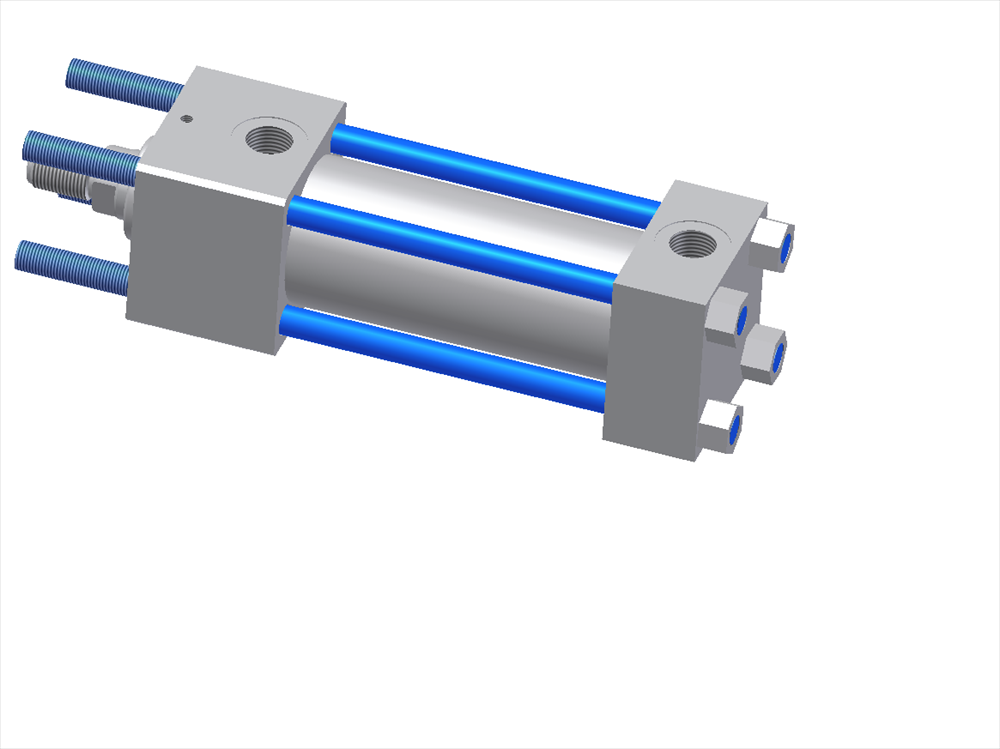

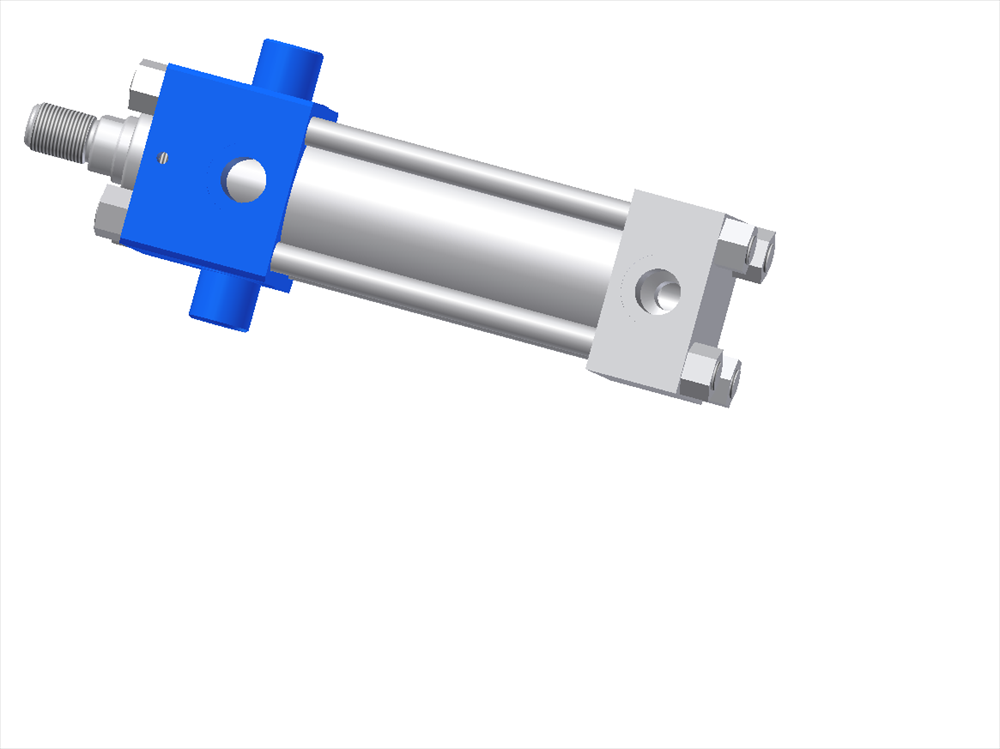

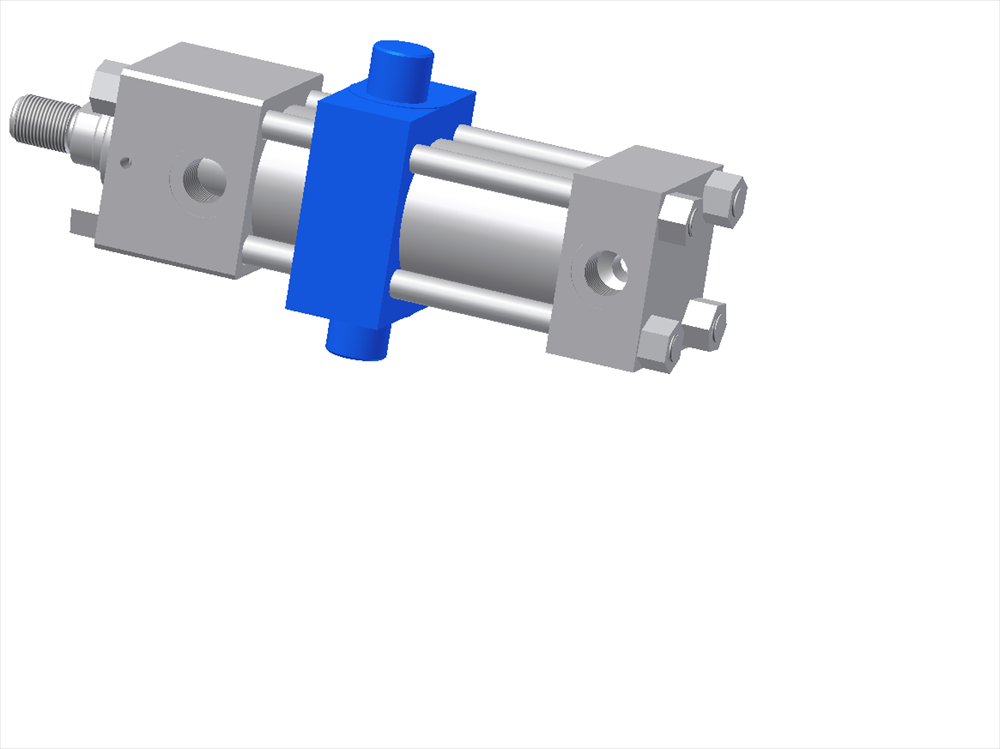

Mounting style
