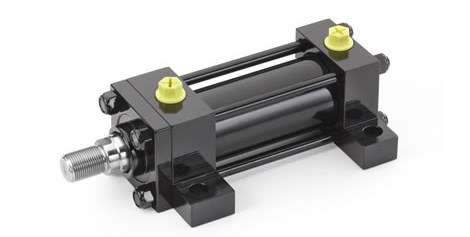

The CH series follows International standards ISO 6020/2 and DIN 24554.

The compact construction with squared heads and tie rod fits to every kind of industrial application with continuous nominal pressure up to 16 MPa.
The choice of selected materials, the severe controls of 100% of all cylinders produced and the quality of the means of production, allows us to reach high standards of quality, reliability and enduring product performance.
The seals used, supplied by premium suppliers, grant high performance and international availability.

The wide range of seals, allows us to offer cylinders for applications with different kinds of hydraulic fluids, speed, frequency and operating temperature.

Our production includes the optional integration of position transducers and adjustable magnetic sensors.

Technical characteristics:

  • Standard ISO 6020/2 and DIN 24554.
  • Nominal pressure 16 MPa (continuous operation)
  • Pressure peak 21 MPa
  • Maximum pressure 25 MPa
  • Bore: 25-200 mm
  • Stroke: up to 4000 mm
  • Up to 3 rod diameter per bore
  • Single or double rod
  • 14 Mounting styles Ref. ISO MP1 – MP3 – MS2 –MT1 –MT2 –MT4 –ME5 –ME6 –MP5 –MX6 –MX2 –MX5- MX3 –MX1


Options:
  • Fixed or adjustable cushions
  • Wide range of seals to suit speed, frequency, temperature and fluid specification
  • Integrated head mounted proximity sensor
  • Integrated position transducer
  • Adjustable magnetic sensors
  • Air bleeds
  • Rod treatment : chromed, induction hardened and chromed, nickel-chromed
  • Drainage


EPC Cylinder configurator

This is an innovative tool that allows the client to configure CH cylinders in a rapid and intuitive way, guiding the technician through the choices of all the options available. Once the cylinder code is defined, the EPC software provides 2D, 3D and PDF drawings, and gives the user the possibility to save projects and request offers.
With the complete access, reserved to the purchasing department, it is possible to make orders directly.
For all orders received through EPC an extra discount will be applied.

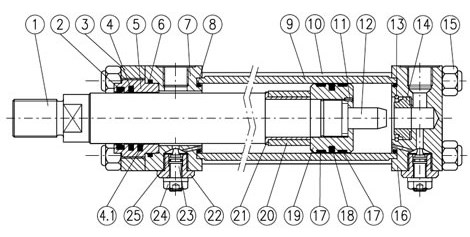

ITEM MATERIAL
1 Rod Chromium-plated steel
2 Dust scraper Polyurethane
3 Flange Steel
4 Rod seal Polyurethane/PTFE
4,1 2nd Rod seal (option L) Nitrile rubber and PTFE
5 Guide bushing Cast iron
6 O-Ring + PBK Nitrile rub.+polyurethane
7 Head Steel
8 O-Ring + PBK Nitrile rub.+polyurethane
9 Liner Steel
10 Tie rod Steel
11 Safety pin Steel
12 Brake spur Steel
13 Rear flashing ring Steel
14 Rear brake bushing Bronze
15 Self-braking nut Steel
16 Rear head Steel
17 Anti-friction slide PTFE
18 Piston seal Polyurethane/PTFE
19
Piston Steel
20 Front brake bushing Steel
21 Spacer Steel
22 Safety plug Steel
23 Adjustment needle Steel
24 Locknut Steel
25 O-Ring Nitrile rubber

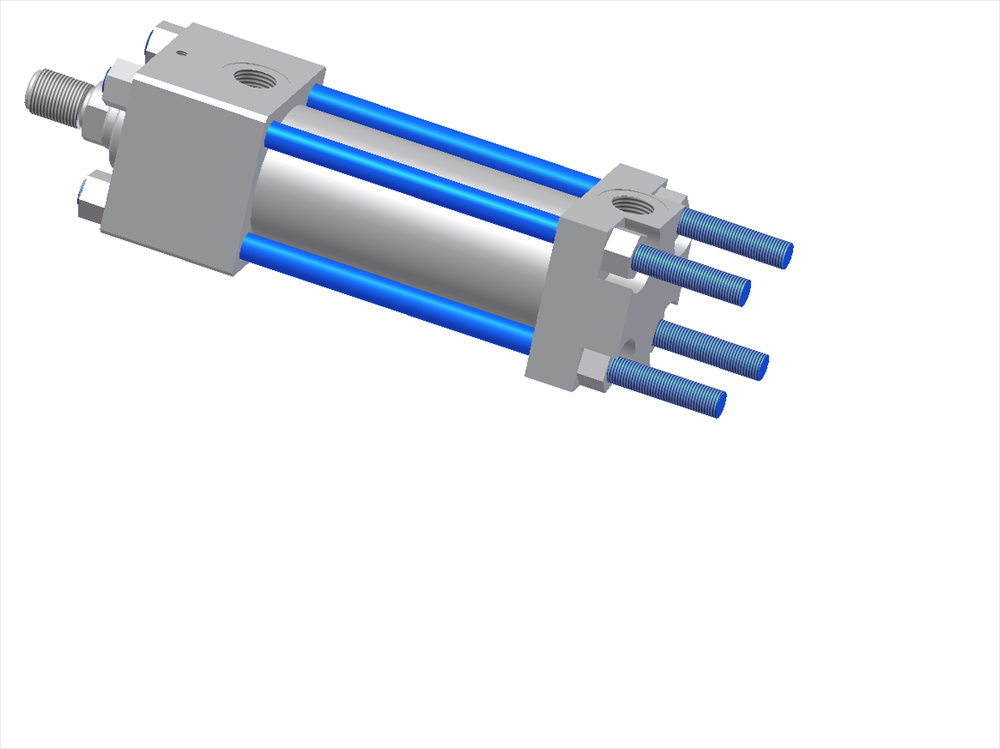

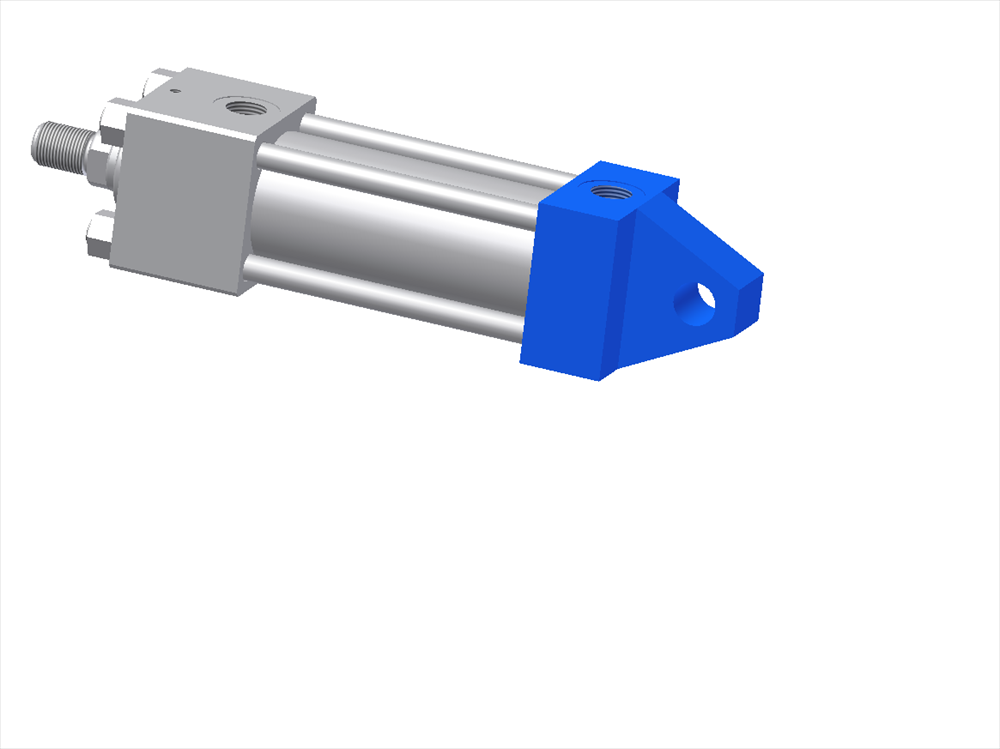

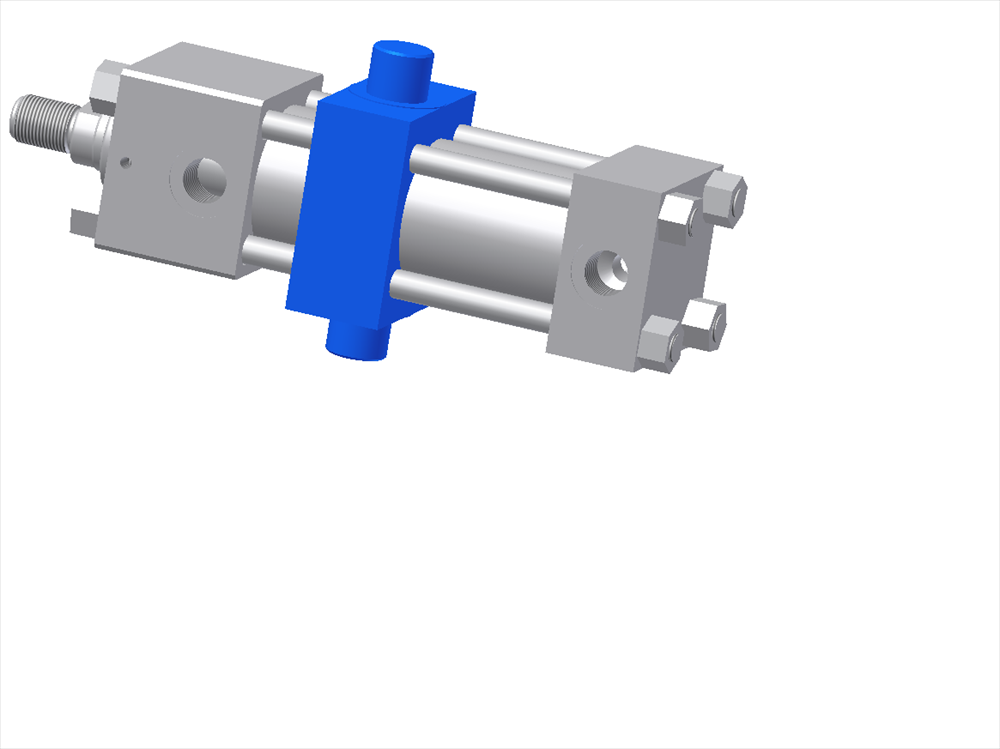

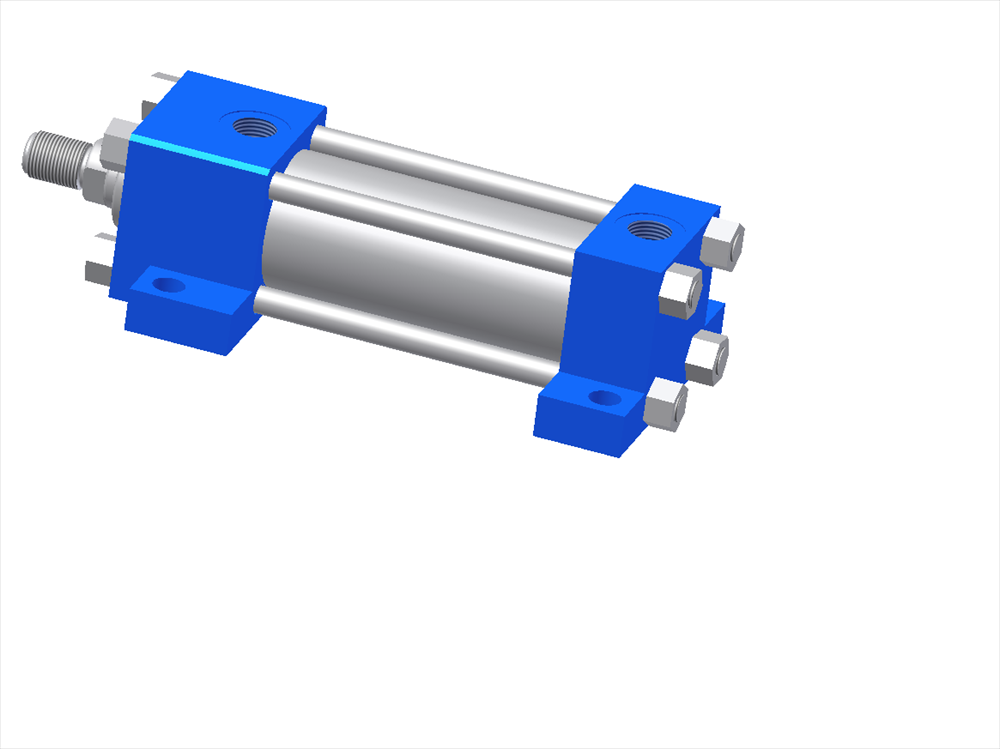

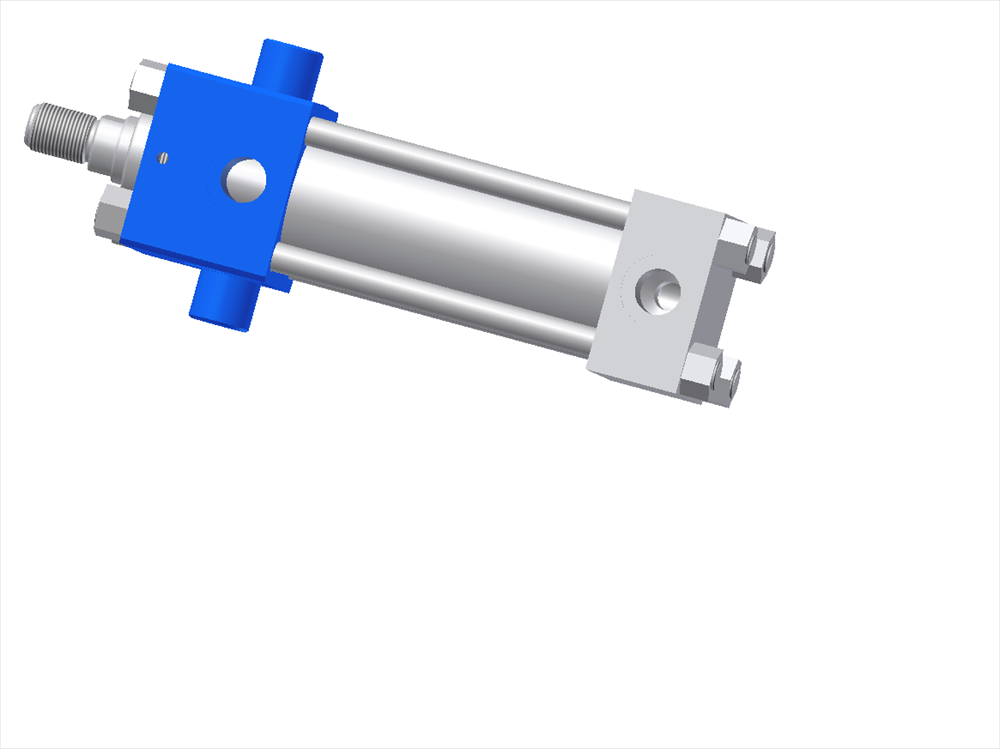

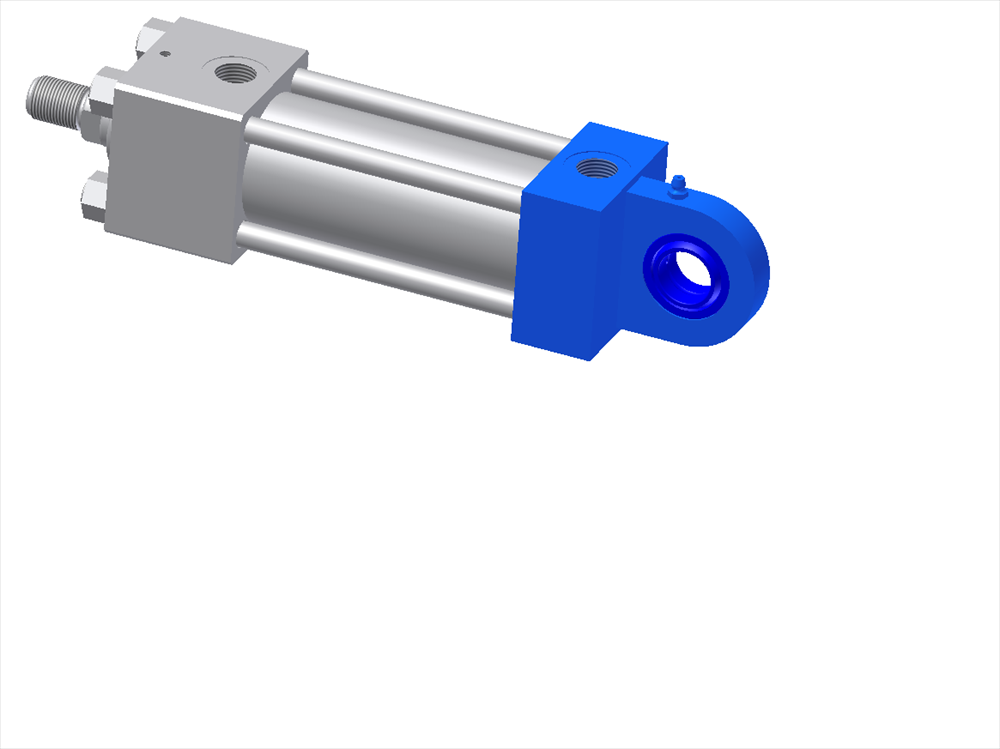

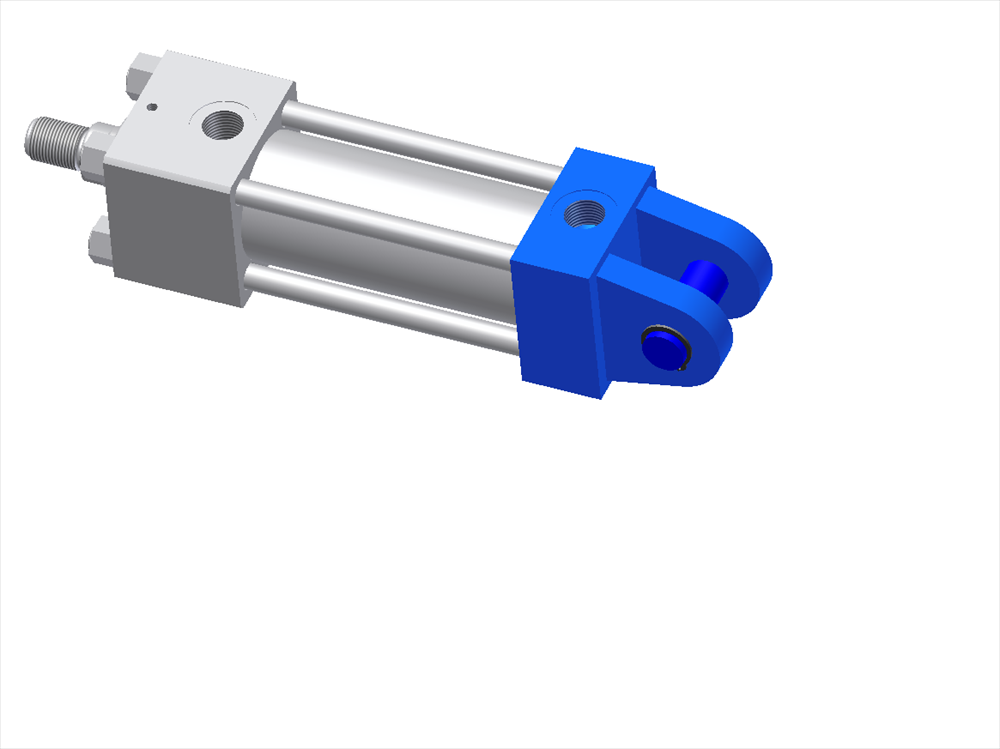

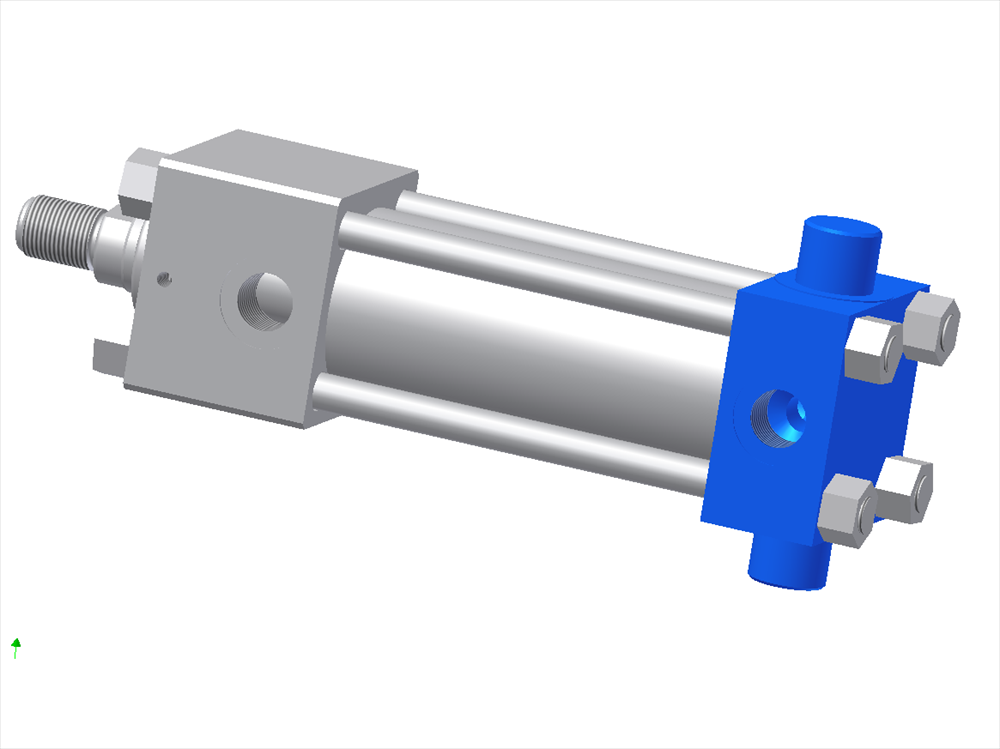

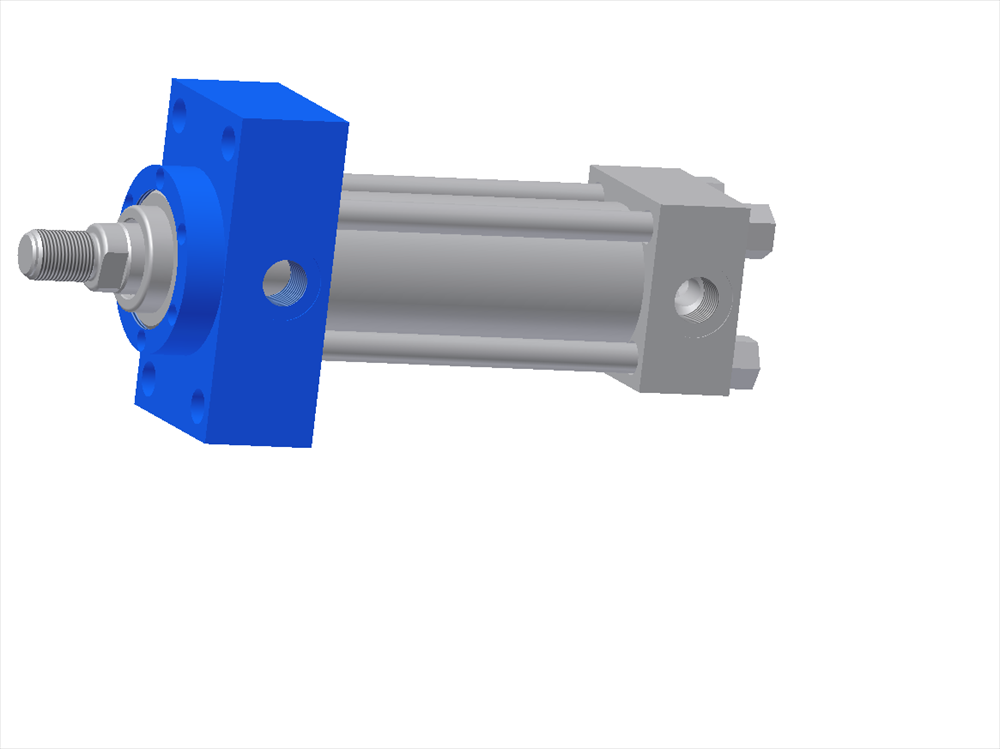

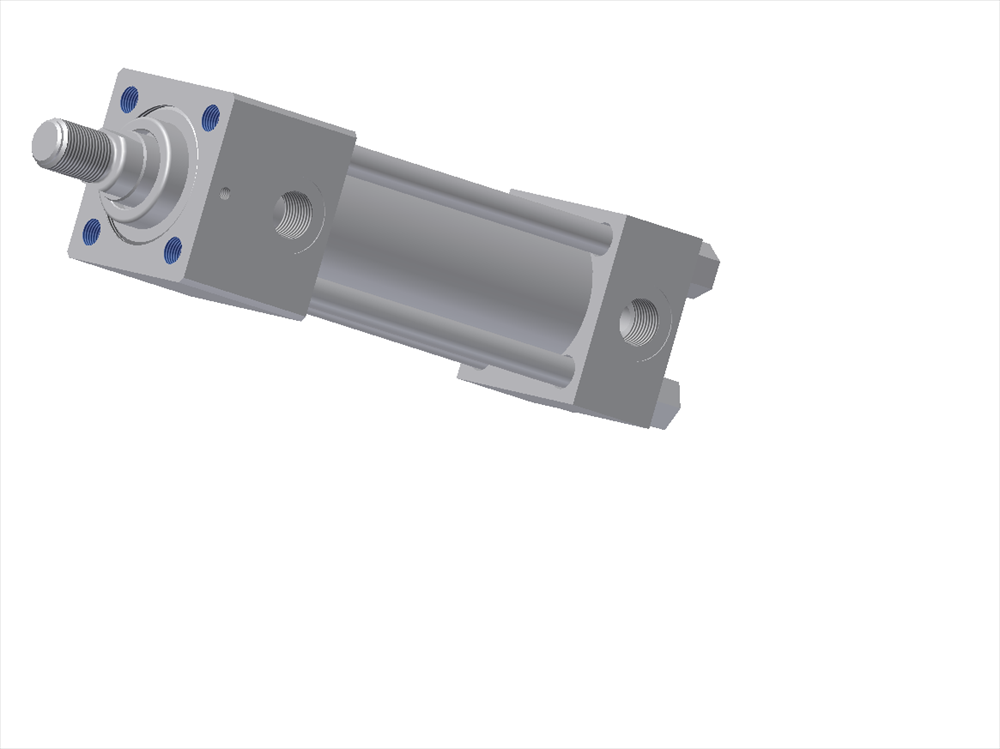

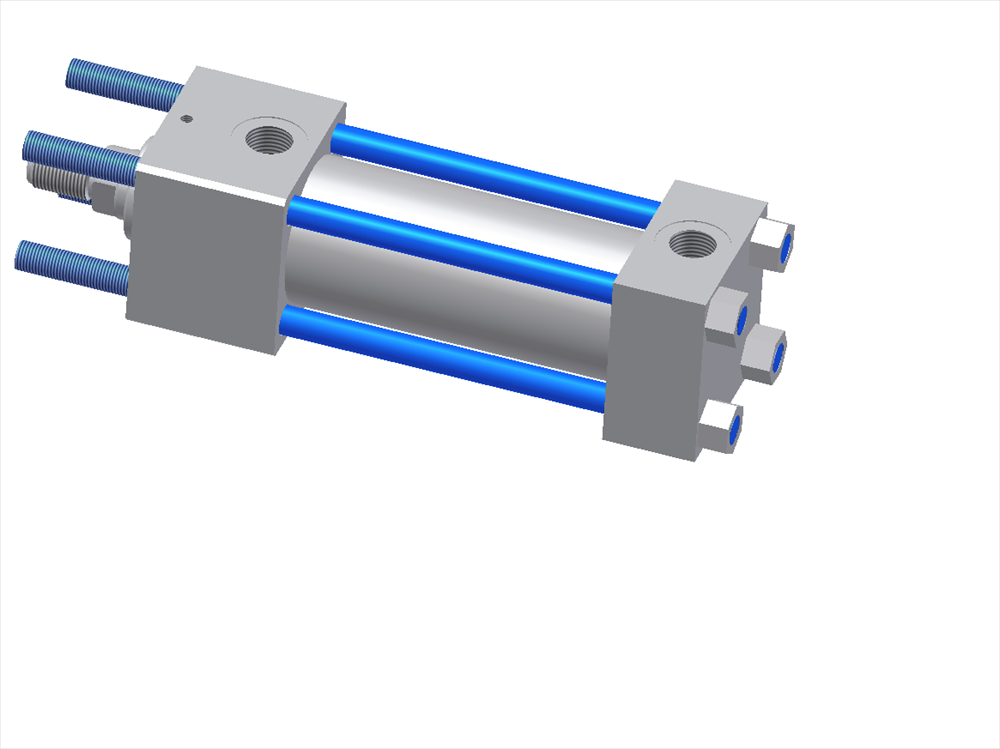

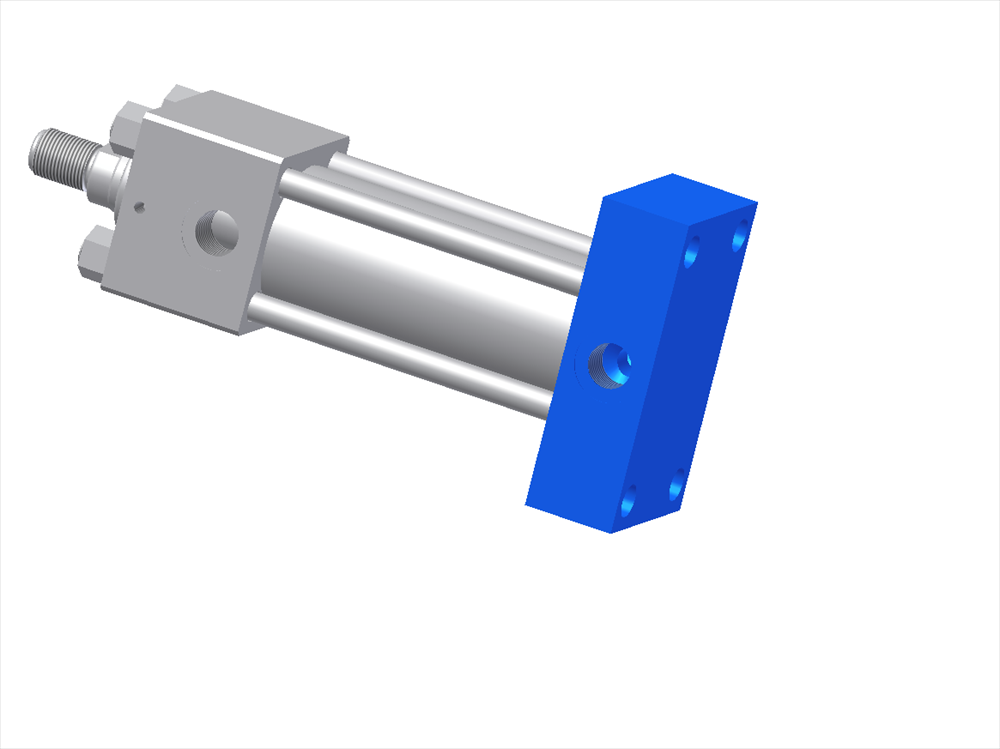

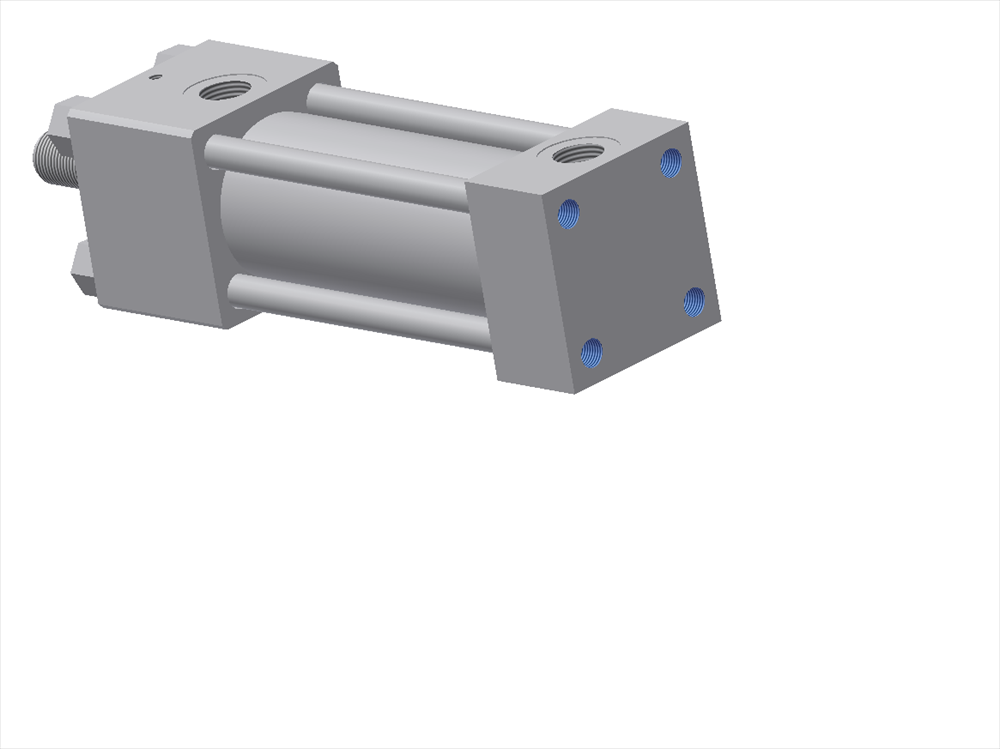

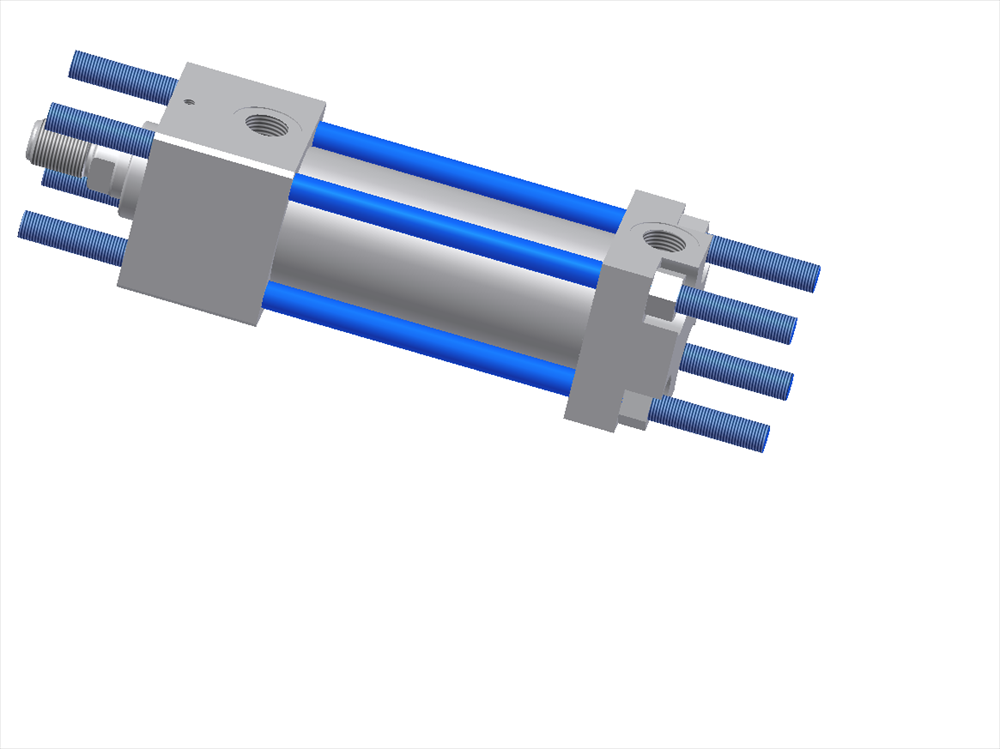

Mounting style
