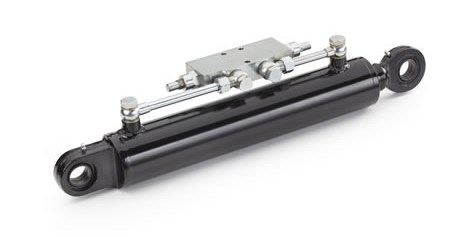

The CL series are welded cylinders with accessible prices, is suitable for the mobile sector or for applications which do not present cyclical fatigue stress.
The choice of selected materials, the severe controls of 100% of all cylinders produced and the quality of the means of production, allows us to reach high standards of quality, reliability and enduring product performance.

The seals used, supplied by premium suppliers, grant high performance and international availability.
The wide range of seals, allows us to offer cylinders for applications with different kinds of hydraulic fluids, speed, frequency and operating temperature.

Technical characteristics:

  • Nominal pressure 14 MPa
  • Maximum pressure 21 MPa
  • Bore 40-100 mm
  • Stroke up to 4000 mm
  • Single or double rod
  • 2 rod diameter per bore
  • 6 mounting styles
  • 3 versions of rod mounting styles


Options:
  • Integrated position transducer with analogue output signal: 4/20 mA or 0/10V
  • >
  • Air bleeds
  • Rod treatment : chromed, induction hardened and chromed, nickel-chromed


EPC Cylinder configurator
This is an innovative tool that allows the client to configure CL cylinders in a rapid and intuitive way, guiding the technician through the choices of all the options available. Once the cylinder code is defined, the EPC software provides 2D, 3D and PDF drawings, and gives the user the possibility to save projects and request offers.
With the complete access, reserved to the purchasing department, it is possible to make orders directly. For all orders received through EPC an extra discount will be applied.

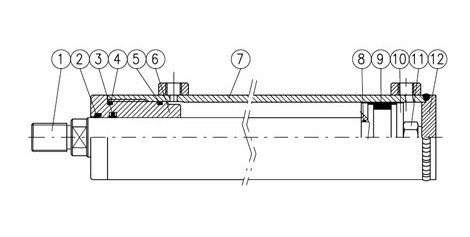

ITEM MATERIAL
1 Rod Chrom. plated st.
2 Dust scraper Poyuretane
3 Rod seal Nitrile rubber
4 O-ring Nitrile rubber
5 O-ring Nitrile rubber
6 Guide Cast iron
7 Liner Steel
8 O-ring Nitrile rubber
9 Piston seal Nitrile rubber
10 Piston
Steel
11 Nut Steel
12 Cap Steel

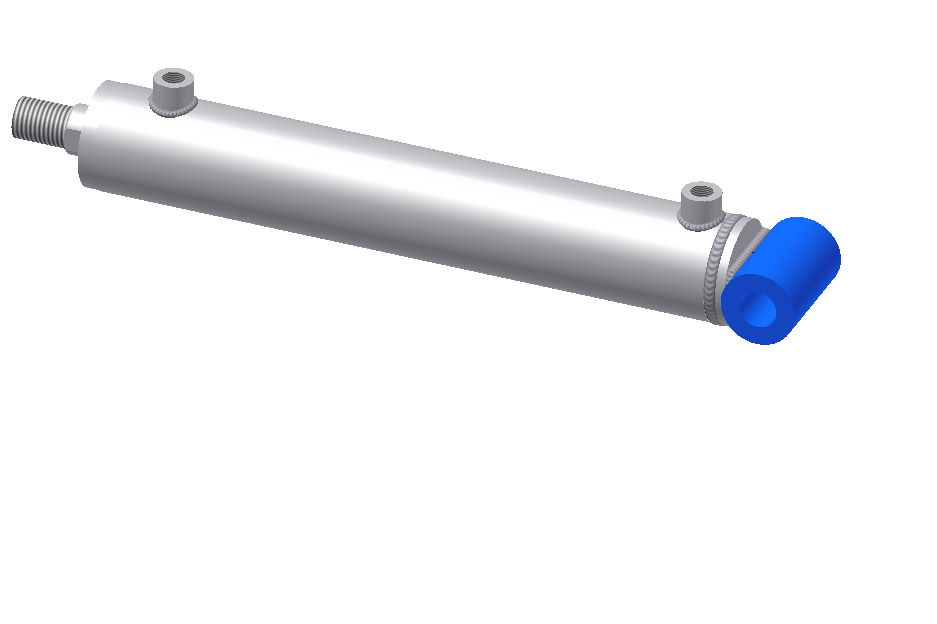

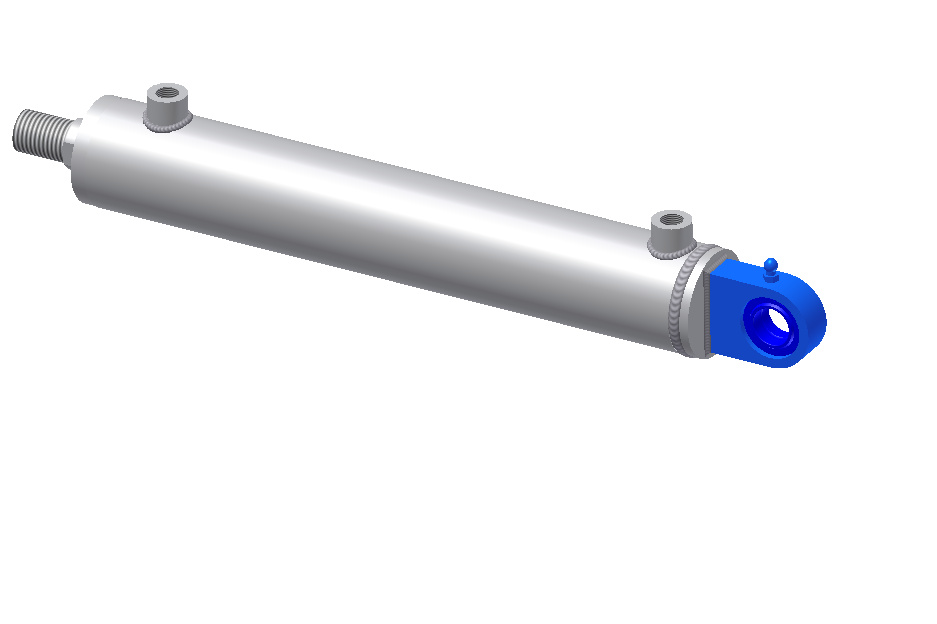

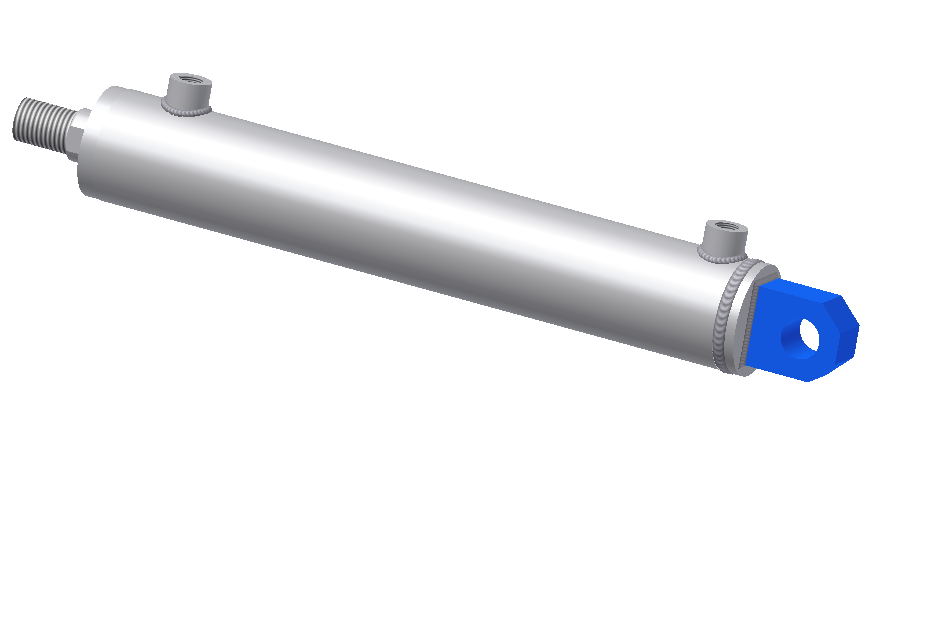

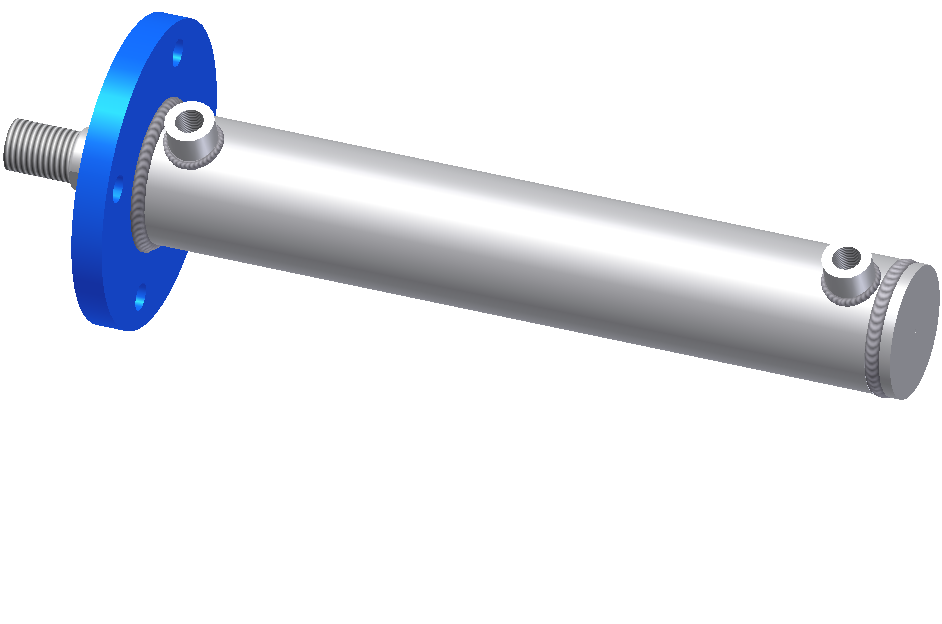

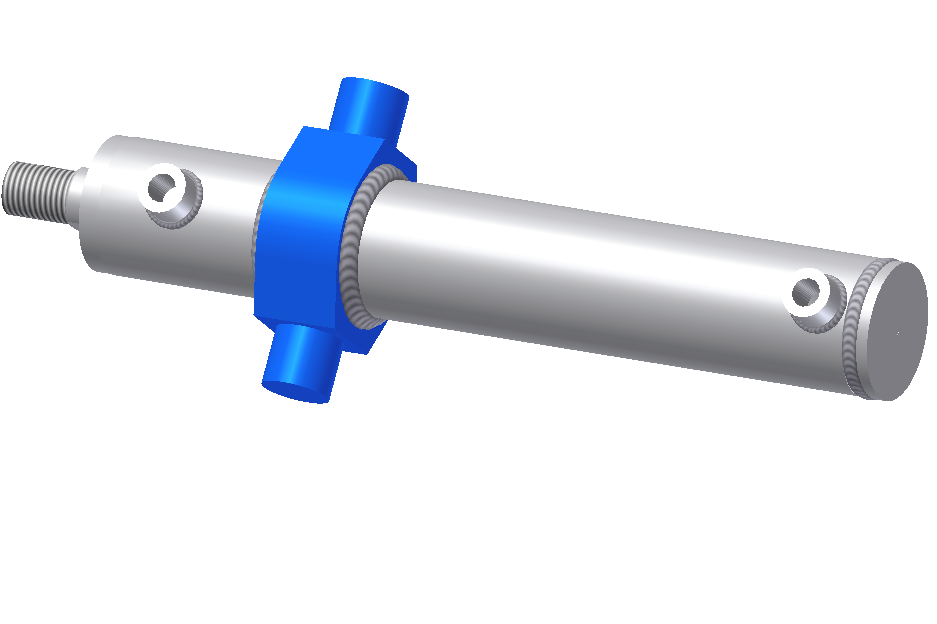

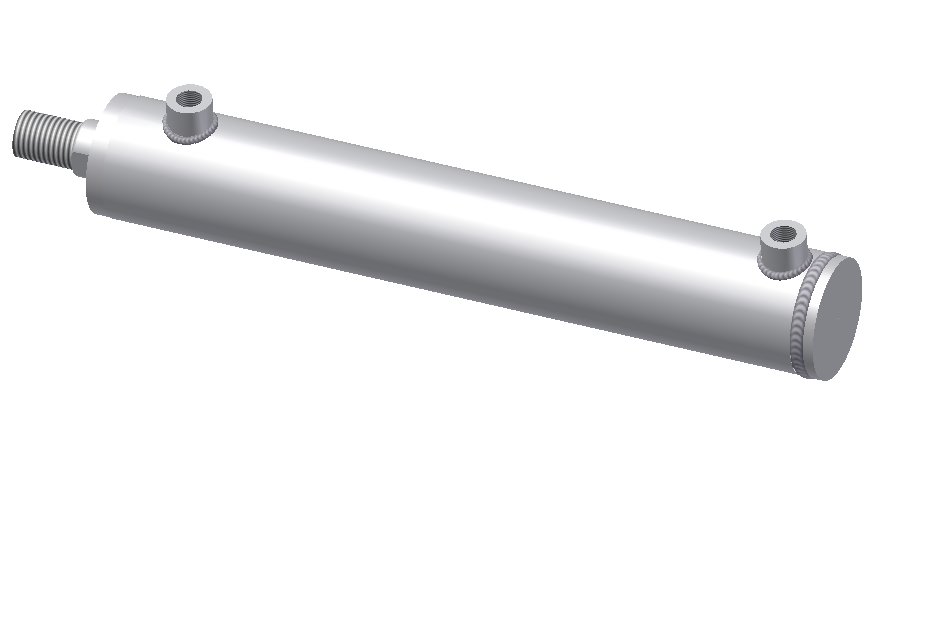

Mounting style
